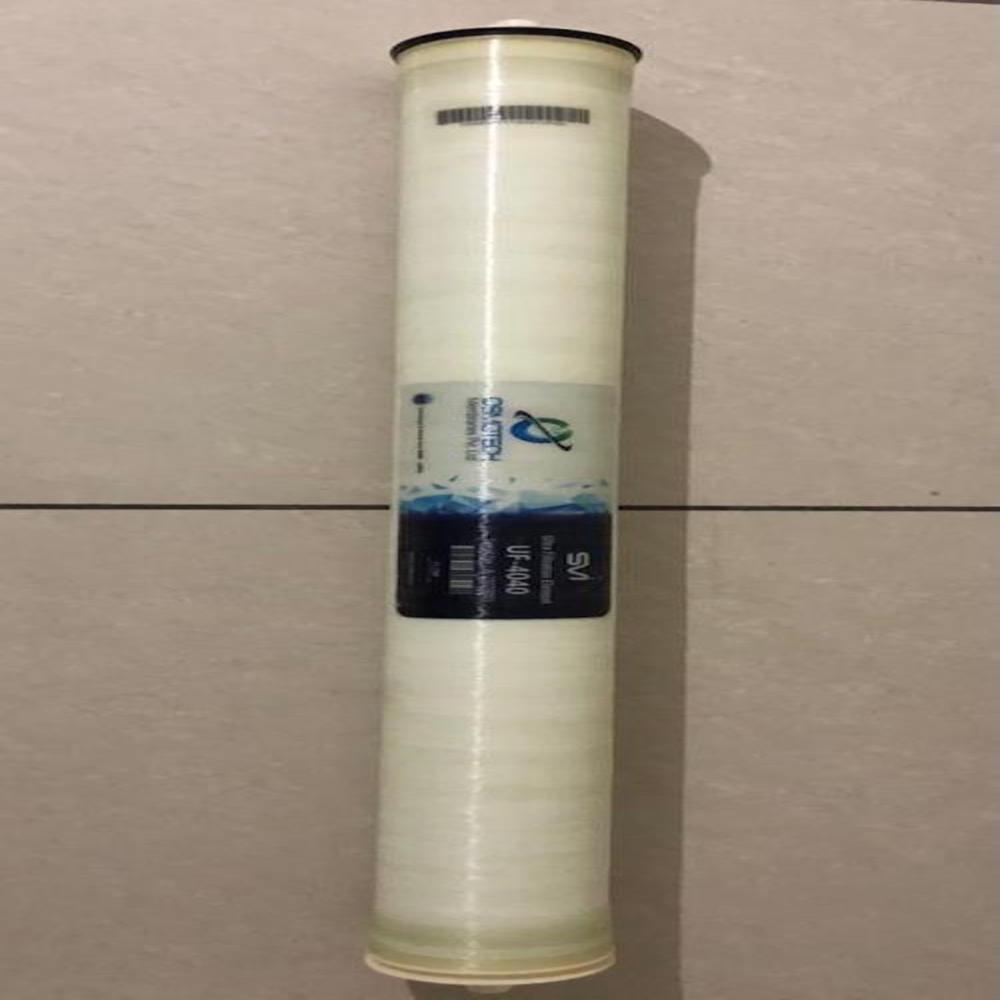

Eduf spiral Ultrafiltration membrane
Eduf spiral Ultrafiltration membrane Specification
- Usage
- Industrial & Commercial Use
- Technology
- Ultrafiltration (UF) Spiral Wound
- Features
- GOOD QUALITY
- Flow Rate
- 0-5000 LPH
- Accessories
- Pressure Vessel, O-Rings, Brine Seal, Connectors
- Type
- Other
- Material
- Plastic
- Storage Capacity
- Not Applicable Liter (L)
- Purifying Function
- Bacteria Removal, Virus Removal, Suspended Solids Reduction
- Power
- Not Required Volt (v)
- Valve Type
- N/A
- Installation Type
- Other
- Temperature
- Max 40 45 C Celsius (oC)
- Water Source
- Surface Water, Borewell Water, Municipal Water
- Dimension (L*W*H)
- 40 inch 8 inch Inch (in)
- Voltage
- Not Applicable Volt (v)
- Weight (kg)
- 12 18 kg Kilograms (kg)
- Warranty
- 1 year
- Application
- Water Treatment Plants, RO Pretreatment, Industrial Filtration
- Mounting Type
- Horizontal / Vertical in Pressure Vessel
- Capacity
- 8000 12000 LPH Ltr/hr
Eduf spiral Ultrafiltration membrane Trade Information
- Minimum Order Quantity
- 25 Pieces
- Supply Ability
- 1000 Pieces Per Month
- Delivery Time
- 7 Days
About Eduf spiral Ultrafiltration membrane
RECOMMENDED ELEMENT CROSS FLOW RATE Feed Spacer (in Mils) Element 24 31 46 4" m3 / Hr 3 4 5 gpm 15 17 20 8" m3 / Hr 15 17 20 gpm 66 75 89 The recommended cross flow rate will be subject to differential pressure limitations ans specifications. MEMBRANE AREA (SQ. FT. Feed spacer ( in mils) Element 24 31 46 4" 86 75 61 8" 379 335 268 OPERATING SPECIFICATION PRESSURE PSI BAR Max. Inlet Pressure 116 8 Min. Outlet Pressure 10 0.7 Max. Differential Pressure Per Elements 18 1.2 Max. Permeate BackPressure 5 0.3 Dimentions Model Length (mm) Elements OD (mm) Tube ID (mm) Feed Rate (LPM) 4040 40 3.9 0.75 95 8040 40 7.9 303FAQs of Eduf spiral Ultrafiltration membrane:
Q: What is the warranty period for the Eduf Spiral Ultrafiltration membrane?
A: The warranty period for the Eduf Spiral Ultrafiltration membrane is 1 year.Q: What is the installation type for this ultrafiltration membrane?
A: The installation type for the Eduf Spiral Ultrafiltration membrane is wall-mounted.Q: What type of material is used in the construction of this ultrafiltration membrane?
A: The Eduf Spiral Ultrafiltration membrane is made of plastic.Q: What is the flow rate range for this product?
A: The flow rate range for the Eduf Spiral Ultrafiltration membrane is 0-500.Q: What is the primary application of this ultrafiltration membrane?
A: The primary application of the Eduf Spiral Ultrafiltration membrane is water filtration, specifically for removing bacteria and viruses.Tell us about your requirement
